DKS1200

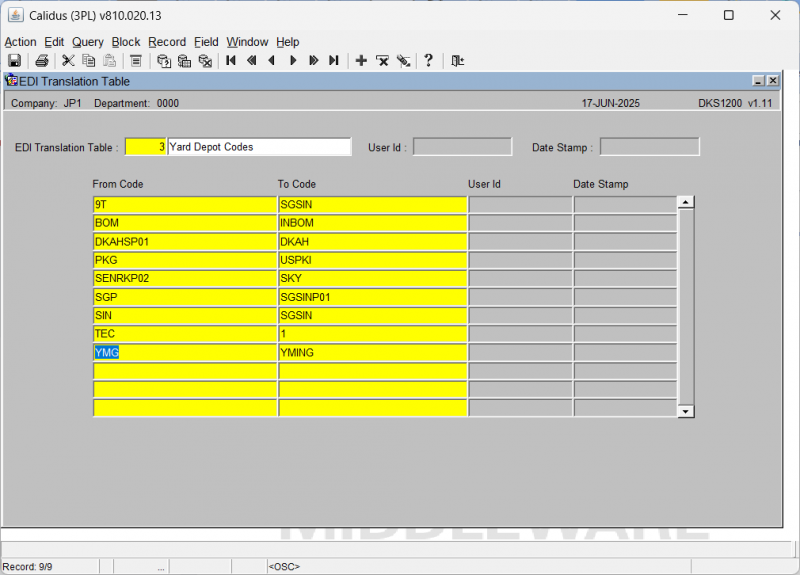

This is the EDI Translation Table (DKS1200 v1.11) screen.

Performing Queries and Navigating Records:

You begin on the EDI Translation Table (DKS1200 v1.11) screen.

The screen displays the following fields at the top:

• EDI Translation Table
• User ID
• Date Stamp

Below these fields, there is a table with the following columns:

• From Code
• To Code
• User Id
• Date Stamp

You click the Enter Query button. You can enter any of the header fields or table fields to query.

You then click the Execute Query button.

The table populates with records under the "Agent Code" EDI Translation Type, showing mappings between "From Code" and "To Code" values.

You can navigate between the EDI Translation Tables by using the Next Record and Previous Record buttons.

Amending Records:

You van enter From Code and To Code fields in a new row.

You then click the Save button.

Removing Records:

You click the Remove Record button.

An "Alert" pop-up window appears with the message "FRM-40405: No changes to apply: query caused no records to be retrieved." You click OK to dismiss this alert.
