WHS0170

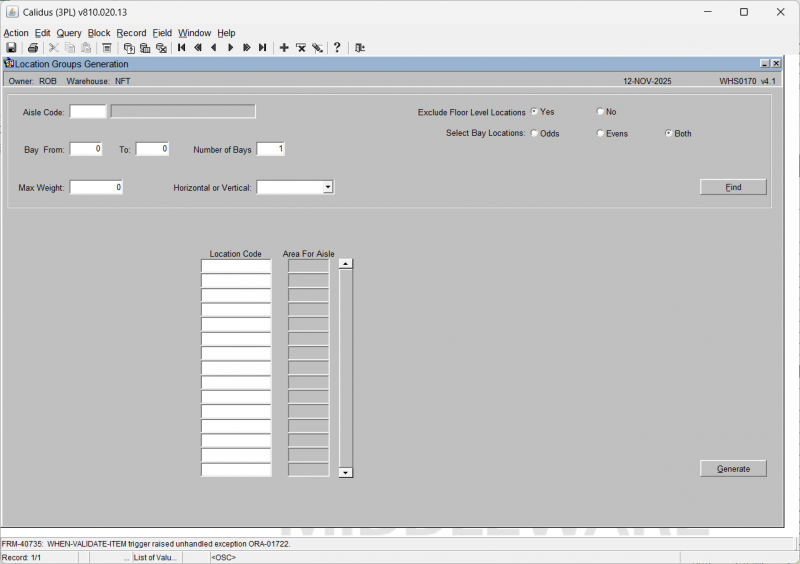

This is the Location Groups Generation screen (WHS0170).

The following fields document the parameters for generating location groups:

Field Name	Description
Aisle Code	The unique identifier for the aisle where groups are to be generated.
Bay From	The starting bay number for the generation range.
To	The ending bay number for the generation range.
Number of Bays	The number of bays that should be included in each generated group.
Max Weight	The maximum weight capacity allowed for each generated group.
Horizontal or Vertical	A dropdown menu to define the orientation of the groups being generated.
Exclude Floor Level Locations	Radio button selection (Yes/No) to exclude locations at floor level from generation.
Select Bay Locations	Radio buttons to specify which bays to include: Odds, Evens, or Both.

Action Buttons:

• Find: Locates the locations corresponding to the specified parameters.
• Generate: Executes the creation of the Location Groups based on the defined settings.
