WHS7920

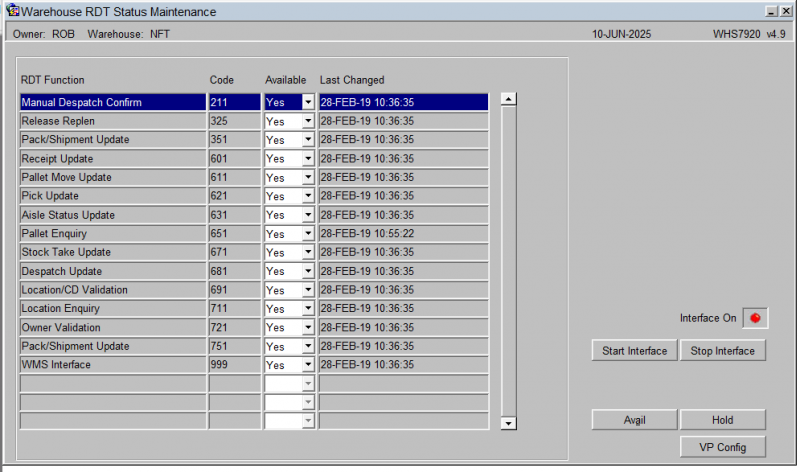

This screen is the major control screen for RDTs in CALIDUS WMS.

Each line controls not only the running of the update process in CALIDUS WMS, but also the availability of the functions to standard CALIDUS WMS processing. So, for example, if the Pallet Receipt Update availability flag is 'Y', you have the ability to send receipt preadvice messages to WCS. If it is 'N', you can't send those messages.

The use of the availability flags in the system will be explained for each sending process described in the next section.

Use Start Interface to start the RF interface programs.

Use Stop Interface to start the RF interface programs.

The light below these buttons indicates whether the interface is on or off.

Note: The use of this screen should be limited to System Administrators only.
