Site

This screen allows users to configure the site details.

The screen will find the site that the user chose when they logged on to the system.

The screen will display the site information on multiple tabs:

• Details - general details.
• Admin - Configuration affecting the system, both the server and the Admin console.
• PDA - Mobile device application configuration.
• Service - Service configuration.

In order to edit any of the details, click the Edit button, allowed only to a Full Admin user.

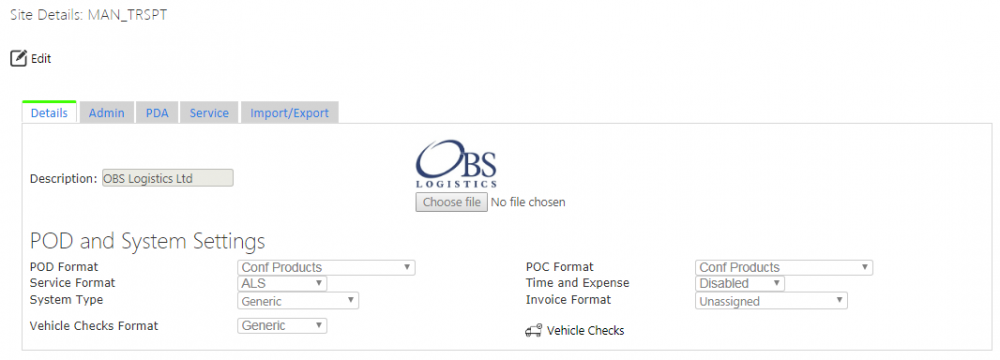

Details

The description of the site may be changed with the field provided.

The screen provides a browse button to find a logo. The logo will be displayed as a picture once uploaded.

The POD/POC/Service format fields allow the user to select from a drop-down box from a list of the available formats.

The System Type controls the general functionality of the system and the device and may be selected from the drop-down list provided from the following values:

• Generic (default)
• ePOD
• eServ
• eServ (Engineering)
• WEBFLEET

The Vehicle Checks Format allows the user to select from a drop-down list of the available report formats.

Once changed, use the provided Save button to save your changes.

To maintain vehicle checks against the site, click the Vehicle Checks button provided - a Vehicle Checks maintenance screen will be displayed.

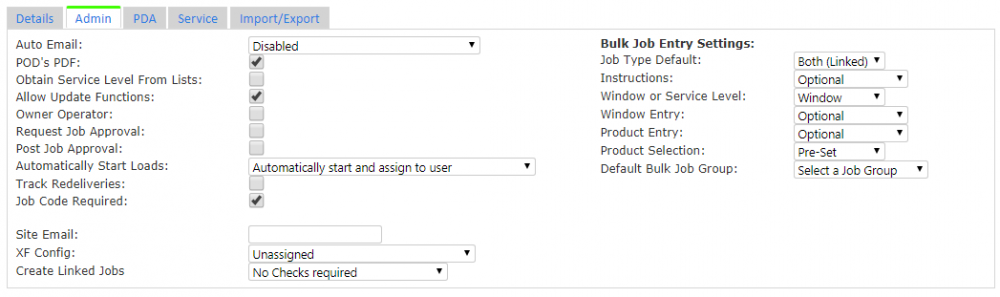

Admin Configuration

This tab allows configuration of the following:

• Auto-Email - a drop-down list to enable or disable automatic emailing of Completion reports (POD, POC and Service reports) to the customers' email addresses, usually the transport or customer service email. Note: The server must be configured for use with the site's mail server for this to work. The options are:
  • Disabled - no emails are sent.
  • Enabled (Complete Only) - only complete (not cancelled) jobs are emailed.
  • Both Enabled (Complete and Cancelled) - Complete and cancelled jobs are emailed.
  • Enabled (Complete and non-amended) - Fully complete (i.e. not amended) jobs are emailed.
  • Enabled (Complete and Amended Only) - Only amended jobs are emailed.
  • Enabled (Cancelled Only) - Only cancelled jobs are emailed
  • Enabled (Not Clean) - Cancelled and amended jobs are emailed.
• POD's PDF - a check box to enable sending Completion reports in PDF rather than HTML format.
• Obtain Service Level from Lists
• Allow Update functions - Are jobs and loads that are at Completed status allowed to be edited?
• Owner Operator - controls whether the site is using owner/operator functionality, where jobs can be shared between carriers (defined as the site).
• Request Job Approval - controls whether the device is allowed to edit and submit jobs after completion.
• Automatically Set Load to In Progress - if enabled, when a driver picks up the next load, it is automatically allocated to the driver and vehicle on the system. If not enabled, the driver must accept the load befoe it is stamped with their vehicle and/or user ID.
• Track Redeliveries - if checked, the system will keep count of the number of attempts to redeliver a job (based on prior cancellations). These jobs will be identified in TTM with a suffix indicating redelivery. For example, if this is the 3rd attempt to deliver the job code JC123, this will be identified in TTM as JC123_R2 i.e. the 2nd redelivery attempt.
• Job Code Required - if enabled, Job Code is required against all jobs.
• Site Email - an email address for the site. If entered, all automatically-emailed Completion reports will also be directed to this address as well.
• XF Config - a drop-down list to link to configuration settings for automatically updating clients' core systems (e.g. TMS) with details of completed or cancelled jobs. This is configured through the Auto-Export administration screen.
• Create Linked Jobs - when creating Linked jobs from the Jobs Admin screen, should the screen check for containers being created (Containers Required), containers and products being created (Containers and Products Required) or not check at all (No Checks Required).

Import-specific configuration may also be changed here:

• Auto Generate Loads - if enabled, generate a load ID per user per day, for service workloads.
• Loads unique within the system? - this controls whether Load IDs are generated by the EPOD system. This is mostly used for eSERV functionality.
• Remove Unspecified Jobs from a Load - when import is complete, should jobs not specified on the Load within the import be removed from the load (i.e. deleted from the system).
• Jobs Unique within Load - controls whether job codes unique within the Load or the site.
• Allow Blank Load - Can jobs be sent into the system through the Loads import be allowed to have a blank load, to remove them from a load.
• Import Create Standing Data - if enabled, and transactional data is imported without proper standing data, this is created with default values, rather that generating errors.
• CSV Upload Sequence - controls how jobs are sequenced. If set to Order Provided, the jobs will be sequenced in the order that the jobs are provided in the upload, regardless of the planned date and times. Note: If sequences are explicitly provided, these will be used in preference.
• Export Job Photos - Determines if the Photos against the job are exported. Values are:
  • Do not include Photos
  • Only export the job if all photos are complete - only when all photos have been successfully uploaded for the job will the job be exported.
  • Export but only include complete photos - the job will be exported, but only those photos that are already fully complete will be included.
  • Export with photo key values only - the job will be exported when complete, including enough information for the external system to request and download the photos on demand through a webservice call.
• Export Load Photos - Determines if the Photos against the load are exported. The options available are identical to the above.
• Create TTM Stops - Determines the order jobs are sent to TTM. If enabled, the TTM stops will be created in the sequence in which they are expected to be completed by the device, rather than using the sequence provided.
• Jobs with Notes Amended - If checked, jobs with driver notes are considered to have amendments.

PDA Configuration

This tab allows configuration of how the mobile device application functions under this site:

• Ad Hoc Collection - if enabled, this allows the PDA user to manually scan collected containers, which are then added to the job.
• Job Status - if enabled, Job Status will be prompted for on the device.
• Capture Arrival Times - if enabled, the device will capture, start time, arrival time and end time.
• Driver Sign Collection - if enabled, the driver is prompted to sign for Collections as well as the customer.
• Container Only Delivery - if enabled, Deliveries with Container and Product information are treated as if they have no product information on the PDA.
• Driver Sign Delivery - if enabled, the driver is prompted to sign for Deliveries as well as the customer.
• Scan Errors Intrusive - if enabled, errors while scanning interrupt the user.
• Delivery Payment - if enabled, the user is prompted to confirm payment received at completion of a job.
• Link C & D on Job Code - if enabled, collections and deliveries with the same job code on a load are seen as linked. Therefore changes to a collection will reflect onto the required delivery items.
• Clause Delivery - if enabled, the customer is able to comment on delivered items.
• User Notes - if enabled, the user is given a tab to enter notes when processing collections, deliveries and services, through a Notes tab.
• Forced Container and Product Delivery - if enabled, the user is not able to use the list of planned containers or products to quickly perform delivery or collection - scanning or text entry is forced.
• Job Consolidation - if enabled, the user is able to consolidate jobs together themselves on the job list.
• Send Full Address - if enabled, the original collection and ultimate delivery addresses are sent to the PDA, as well as the addresses for the job.
• Scan at Vehicle - if enabled, the user is able to perform 2-stage scans of items, first at the vehicle, second in front of the user.
• Job Transfer - if enabled, the service job in progress is allowed to be transferred.
• Next Job Automatic - if enabled, when a job is completed at a location, the next job at that location automatically starts.
• Seamless Scanning - if enabled, Camera Scanning does not exit between successful scans.
• Auto Login - if enabled, and the application is restarting after a forced shut down, the application logs back on back to the point the user left it, without requesting user credentials.
• Audit Login - if enabled, EPOD will audit both logon and logoff from the device.
• Change Vehicle Through Trailer - if enabled, and a trailer has been swapped, the device will force swap the user's vehicle to this new trailer.
• Ad Hoc Delivery - if enabled, this allows the PDA user to manually scan delivered containers, which are then added to the job.
• Deliver All - if enabled, delivery jobs can be processed by exception. This means that the driver can mark items not received, then use a Deliver All button on the Job Details tab to mark all the remaining containers and products as delivered in full.
• Check for Job Updates at all times - if enabled (the default), a job is checked to see if it has been updated whenever the driver clicks Start Job, Arrive Job or Continue Job. If disabled, the job will only be checked for updates if there has not been a check in the last few minutes.
• Check for Pending Updates at all times - if enabled (the default), a whole load is checked to see if it has been updated every few minutes, regardless of the last time it was checked. If disabled, the load will only be checked for updates if there has not been a check in the last few minutes.
• Generate Ad Hoc Collection/Config - if populated, allows the user to created an unplanned ad hoc collection at the last location visited. The value here controls the created job's parameters, through the Job Group assigned.
• Metrics Entry - if enabled, forces the user to enter Load Metrics when starting or ending a load.
• Resequencing Options - if set, controls how the system reacts if the user attempts to complete jobs out of sequence.
• Job Photo - if enabled, this prompts to PDA user to photograph a physical document after signing for the delivery/collection.
• Display Job Code on PDA - select the job reference primarily displayed on the PDA screens from a drop-down list of all job references.
• Generate Depot Returns - if enabled, when a delivery or an item is cancelled, a system-generated Depot Unloading job is created with these items on, to manage the return of the non-delivered items to the depot. This can be through the back-end of the system (Server Generated) or on the device at execution (Dynamic on Device).
• PDA Style - a drop-down list, allowing selection of the general look and feel of the mobile device application.
• Job Items - controls whether job items are allowed.
• Auto update activity indicator - controls how automatically updating the load operates on the device.
• Alternate Product Barcodes - allows selection of the field where alternate product barcodes are stored in the data.

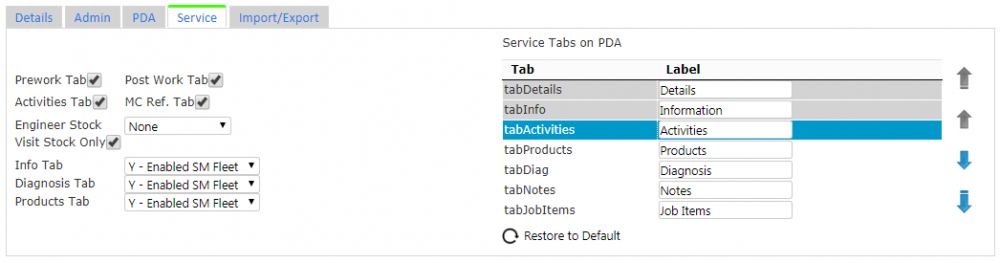

Service Configuration

This tab allows the user to configure the service functionality of the mobile device application.

Note: This controls both the information shown in Service Details and that can be entered during the completion of a service task on the mobile device application.

Each element controls a tab or section that appears during the service process.

The order that the tabs appear on the device can also be controlled, through the list on the right. The labels for the tabs can also be entered.

To perform changes, click on the line - the line will be highlighted and the label may be edited. The tab may then be moved up or down the list using the buttons on the right.
