INTRODUCTION
This document describes the required screens to be used in setting up the information concerned with the Sales Order Process in the warehouse. Other guides describe the set up of company, user, warehouse, owners etc.
This is a generic guide based on the version of the CALIDUS WMS system at the time of writing.
It can also be used by clients to specify their specific data values to aid initial system set up as well as for future reference.
Note that fields marked '**' are mandatory and are needed to ensure correct set up of the system.

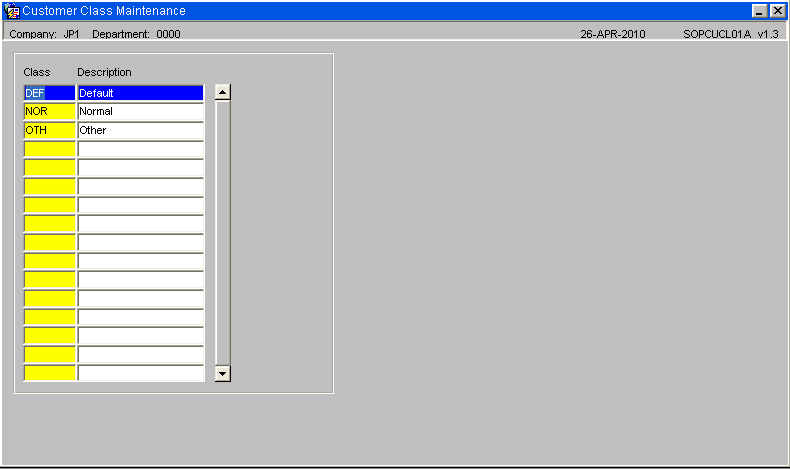

CUSTOMER CLASS MAINTENANCE (SOPCUCL01A)
| Field Name |
Description |
Options |
Generic Value
|
| Class ** |
Code used to determine the type of customer (i.e. retail, wholesale etc) |
4 character free text field |
Defined by the client
|
| Description |
Description of the customer class |
20 character free text field or left blank |
Defined by the client
|

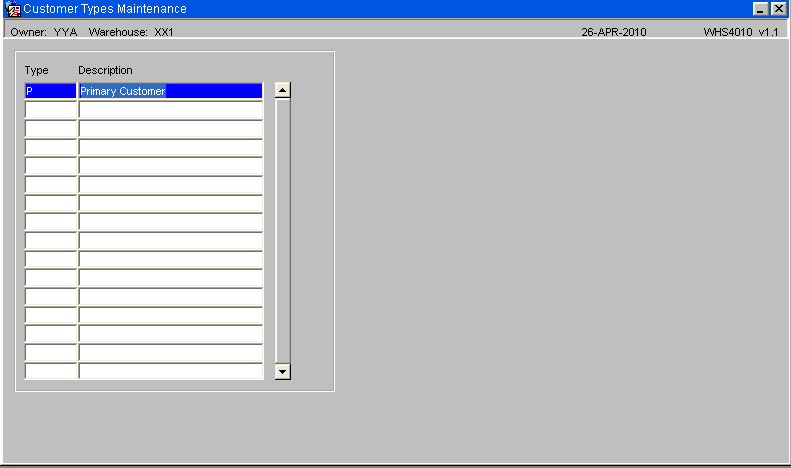

CUSTOMER TYPES MAINTENANCE (WHS4010)
| Field Name |
Description |
Options |
Generic Value
|
| Type ** |
The type of customer being delivered to |
2 character free text field |
Defined by the client
|
| Description |
The description of the customer type |
30 character free text field or left blank |
Defined by the client
|
CUSTOMER PRIORITY MAINTENANCE (CASS5017)
Used for cross docking and order segregation, a priority set against a customer will determine which customers can be cross docked to.
| Field Name |
Description |
Options |
Generic Value
|
| Priority ** |
The priority code used |
1 character free text field |
‘X’
|
| Description |
The description of the priority code |
30 character free text field |
Defined by the client
|
CUSTOMER WIZARD - DELIVERY DETAILS (WHSORA035)
Customer Wizard - Invoice Address (WHSORA035)
| Field Name |
Description |
Options |
Generic Value
|
| Partner Code ** |
Customer code and sub code (Sub code must always be ‘001’) |
10 character free text field |
Defined by the client
|
| Full Name ** |
Full name of the customer |
35 character free text field |
Defined by the client
|
| Currency ** |
The currency code for the customer is to be invoiced in |
Must have been created in currency codes maintenance – LOV available |
Defined by the client
|
| Address Type ** |
The default address type for this customer and the address number |
DEL – you can have multiple addresses for one customer |
DEL
|
| Name ** |
The customer’s name |
35 character free text field |
Defined by the client
|
| Address ** |
The first two lines of the customer’s address |
2 x 35 character free text field (note, 2nd line can be left blank) |
Defined by the client
|
| Town ** |
The town the customer resides in |
35 character free text field |
Defined by the client
|
| Post Code ** |
The post code/zip code for the customer |
10 character free text field |
Defined by the client
|
| County |
The county /state for the customer |
15 character free text field or left blank |
Defined by the client
|
| Country |
The country code for the customer |
Must have been created in Country codes maintenance or left blank – LOV available |
Defined by the client
|
| Phone No |
The telephone number for the customer |
15 character free text field or left blank |
Defined by the client
|
| EAN Reference |
Client specific EAN number for this customer |
13 character free text field or left blank |
Defined by the client
|
| Transport Charge |
The amount to be charged to the customer for transport |
10 digit numeric field |
Defined by the client
|
| Invoice Date |
The date the customer was last invoiced |
Display only |
N/A
|
| Customer Creation Date |
The date the customer code was created |
Display only |
N/A
|
| Last Amendment Date |
The date details of the customer code were changed |
Display only |
N/A
|
| Statement Date |
The last statement date for the customer |
Display only |
N/A
|
| Last Payment Date |
The date the customer last paid an invoice |
Display only |
N/A
|
| Buttons |
|
|
|
| New Delivery Address |
Enables the user to add a new address for the customer |
n/a |
n/a
|
| Warehouse Details |
Enables the user to enter warehouse specific details for the customer (not migrated) |
n/a |
n/a
|

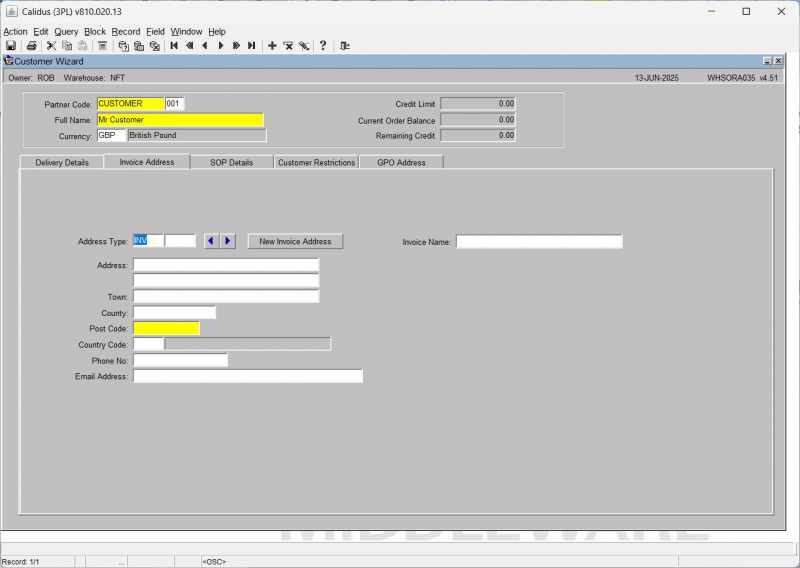

Customer Wizard – Invoice Address (WHSORA035)
| Field Name |
Description |
Options |
Generic Value
|
| Address Type ** |
The default address type for this customer and the address number |
INV – you can have multiple addresses for one customer |
INV
|
| Address ** |
The first two lines of the customer’s invoice address |
2 x 35 character free text field (note, 2nd line can be left blank) |
Defined by the client
|
| Town ** |
The town of the invoice address |
35 character free text field |
Defined by the client
|
| Post Code ** |
The post code/zip code for the invoice address |
10 character free text field |
Defined by the client
|
| County |
The county /state of the invoice address |
15 character free text field or left blank |
Defined by the client
|
| Country Code |
The country code of the invoice address |
Must have been created in Country codes maintenance or left blank – LOV available |
Defined by the client
|
| Phone No |
The telephone number of the invoice address |
15 character free text field or left blank |
Defined by the client
|
| Buttons |
|
|
|
| New Invoice Address |
Enables the user to add an additional invoice address for the customer |
n/a |
n/a
|

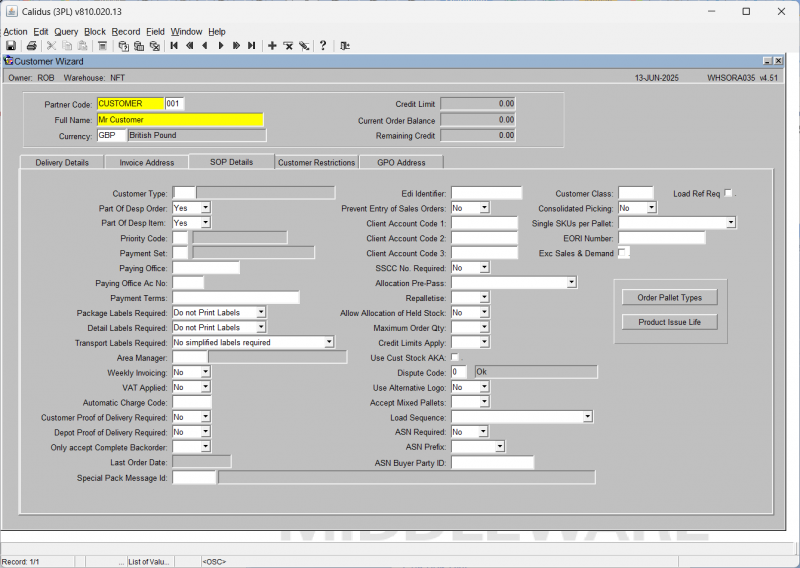

Customer Wizard – SOP Details (WHSORA035)
| Field Name |
Description |
Options |
Generic Value
|
| Customer Type |
The customer type for this customer |
Must have been created in customer types maintenance |
Defined by the client
|
| Part of Desp Order |
Determines whether an order can be despatched if the whole order is not fulfilled (not migrated) |
Y or N |
Defined by the client
|
| Part of Desp Item |
Determines whether an order can be despatched if the whole product quantity is not fulfilled (not migrated) |
Y or N |
Defined by the client
|
| Priority Code |
The priority code for the customer |
Must have been created in priority codes maintenance – LOV available |
Defined by the client
|
| Payment Set |
The group code for the customer under which the invoice will be paid (not migrated) |
1 character free text field or left blank |
Defined by the client
|
| Paying Office |
The office name where the invoice will be paid from (not migrated) |
10 character free text field or left blank |
Defined by the client
|
| Paying Office Ac No. |
The account number for the invoicing paying office |
3 character free text field or left blank |
Defined by the client
|
| Package Labels Req |
Does this customer require packing labels |
Do Not Print Labels |
Defined by the client
|
|
|
Print At All Levels |
|
|
|
Print Labels |
|
| Detail Labels Req |
Are packing labels required at detail level? (By stock code) |
Do Not Print Labels |
Defined by the client
|
|
|
Print At All Levels |
|
|
|
Print Labels |
|
| Transport Labels Req |
Are transport labels required |
No Simplified Labels Required |
Defined by the client
|
|
|
Yes, Produce Simplified Labels |
|
| Area Manager |
The name of the area manager for this customer |
4 character free text field or left blank |
Defined by the client
|
| Special Pack Msg Id |
The id code for a message that is to be produced at packing |
6 character free text field or left blank |
Defined by the client
|
| Weekly Invoicing |
Does the customer require invoicing? (not migrated) |
Y or N |
Defined by the client
|
| Vat Applied |
Is V.A.T to be applied to the customer’s invoices? (not migrated) |
Y or N |
Defined by the client
|
| Automatic Charge Code |
If an automatic charge is to be applied to the invoice, what is the code for this charge |
5 character free text field or left blank |
Defined by the client
|
| Customer POD Req |
Does the customer require a POD |
Y or N |
Defined by the client
|
| Depot POD Required |
Does the customer require an additional depot POD (not migrated) |
Y or N |
Defined by the client
|
| Only Accept Complete Back Order |
If backordering is used, will the customer only receive orders that completely fulfilled (not migrated) |
Y or N |
Defined by the client
|
| EDI Identifier |
The code that will be used to identify this customer on EDI flows (not migrated) |
11 character free text field or left blank |
Defined by the client
|
| Prevent Ordering |
If set to ‘Y’, orders will not be able to be raised against this customer |
Y or N |
Defined by the client
|
| Client Account Code 1 |
An account number for the customer which will be produced on outbound documentation |
10 character free text field or left blank |
Defined by the client
|
| Client Account Code 2 |
An additional account number for the customer which will be produced on outbound documentation |
10 character free text field or left blank |
Defined by the client
|
| SSCC No. Required |
Are SSCC numbers to be used for this customer |
Y or N |
Defined by the client
|
| Last Order Date |
The date an order was last raised for this customer |
Display only |
N/A
|
| Repalletise |
Do orders need to be repalletised for this customer |
Y or N |
Defined by the client
|

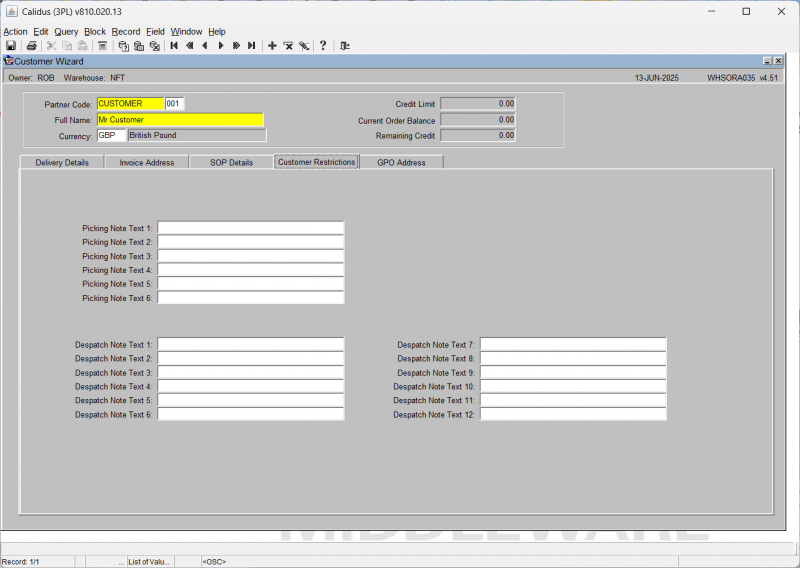

Customer Wizard – Customer Restrictions (WHSORA035)
| Field Name |
Description |
Options |
Generic Value
|
| Picking Note Text 1-6 |
Text entered here will be produced on the picking list |
6 x 40 character free text fields or left blank |
Defined by the client
|
| Despatch Note Text 1-10 |
Text entered here will be produced on the delivery note |
10 x 40 character free text fields or left blank |
Defined by the client
|

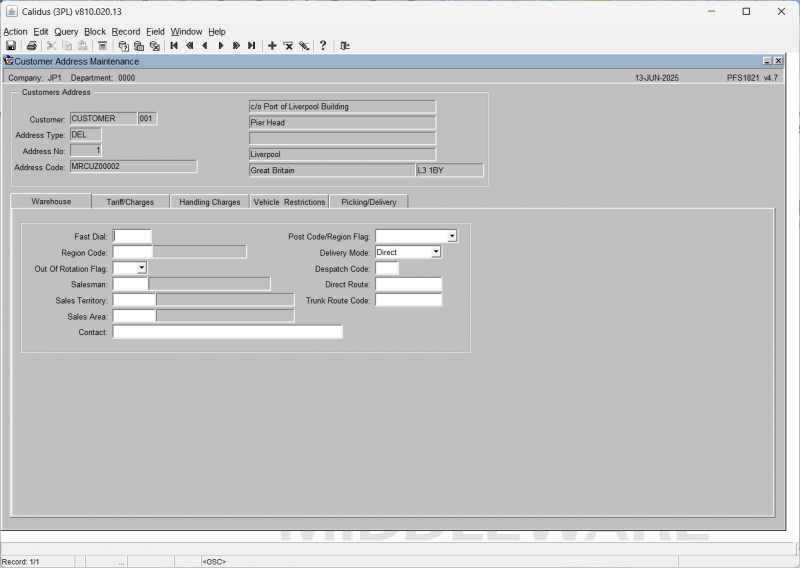

Warehouse
| Field Name |
Description |
Options |
Generic Value
|
| Fast Dial
|
|
|
|
| Region Code
|
|
|
|
| Out of Rotation Flag
|
|
No, Yes
|
Yes
|
| Salesman
|
|
|
|
| Sales Territory
|
|
|
|
| Sales Area
|
|
|
|
| Contact
|
|
|
|
| Post Code/Region Flag
|
|
|
|
| Delivery Mode
|
|
Direct, Trunk
|
Direct
|
| Despatch Code
|
|
|
|
| Direct Route
|
|
|
|
| Trunk Route Code
|
|
|
|

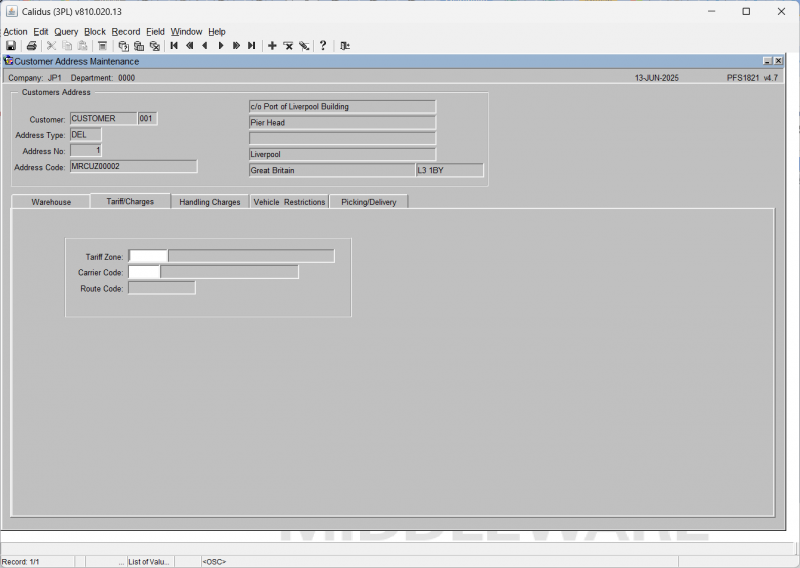

Tariff/Charges
| Field Name |
Description |
Options |
Generic Value
|
| Tariff Zone
|
|
|
|
| Carrier Code
|
|
|
|

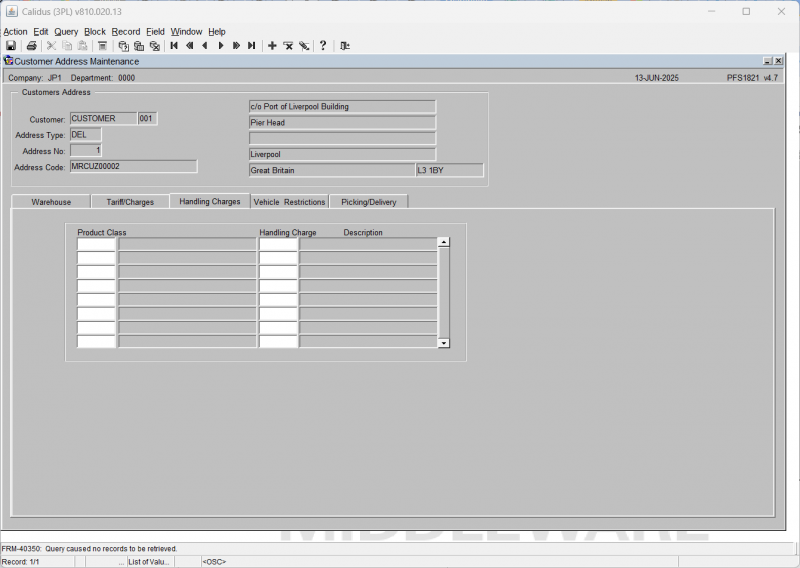

Handling Charges
| Field Name |
Description |
Options |
Generic Value
|
| Product Code
|
|
|
|
| Handling Charge
|
|
|
|

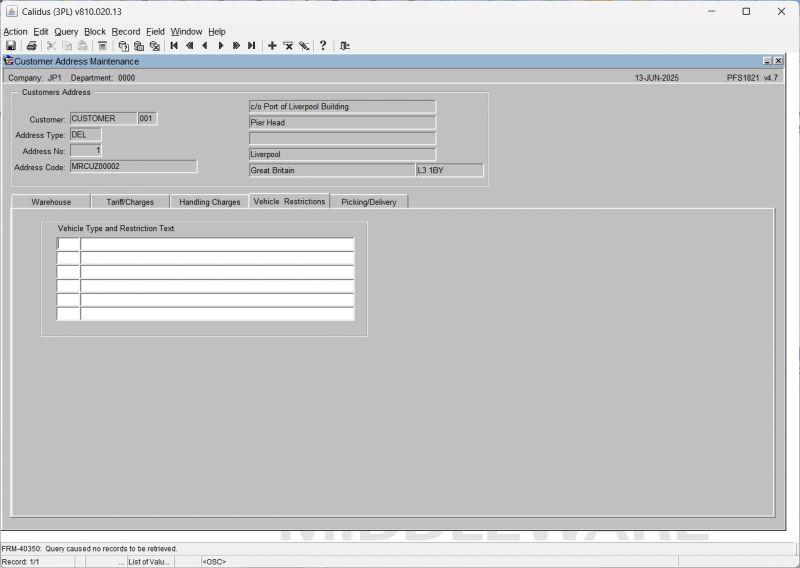

Vehicle Restrictions
| Field Name |
Description |
Options |
Generic Value
|
| Vehicle Type
|
|
|
|
| Restriction Text
|
|
|
|

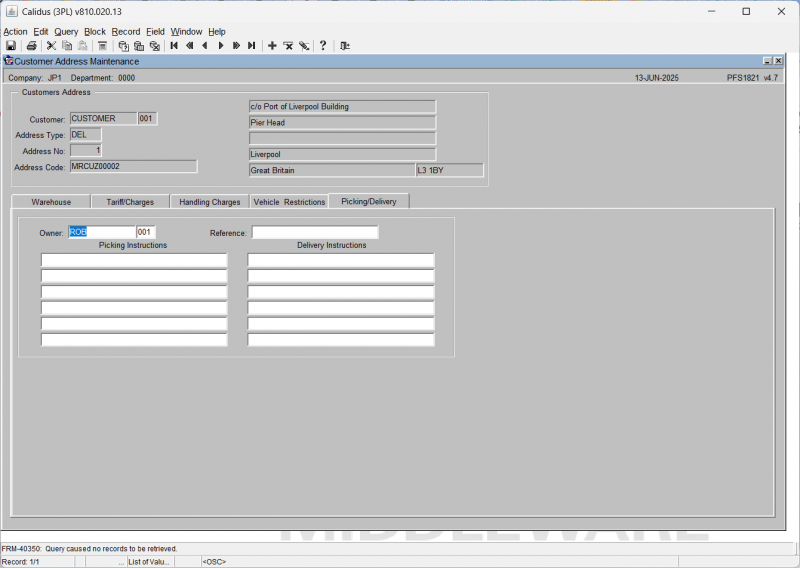

Picking/Delivery
| Field Name |
Description |
Options |
Generic Value
|
| Owner
|
The owner. Display only
|
|
|
| Reference
|
Any reference
|
|
|
| Picking Instructions
|
if entered will appear on the pick note for that customer.
|
|
|
| Delivery Instructions
|
if entered will appear on the despatch note for that customer.
|
|
|
Note: Not all pick note and despatch note formats will display instructions.

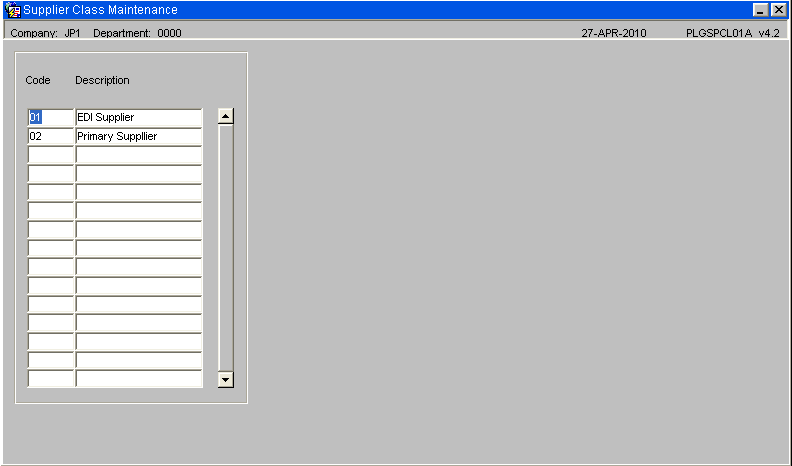

SUPPLIER CLASS MAINTENANCE (PLGSPCL01A)
| Field Name |
Description |
Options |
Generic Value
|
| Code ** |
The code for the supplier class |
4 character free text field |
Defined by the client
|
| Description ** |
The description for the supplier class code |
20 character free text field |
Defined by the client
|

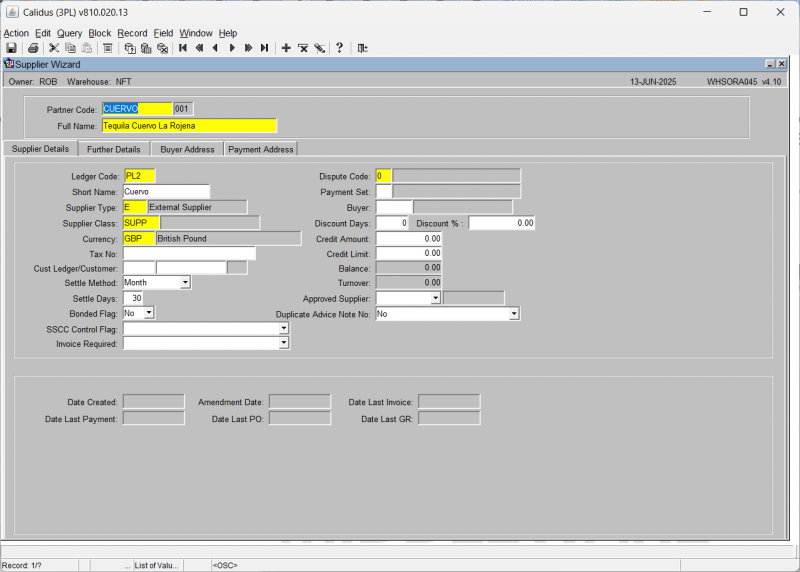

SUPPLIER WIZARD - SUPPLIER DETAILS (WHSORA045)
| Field Name |
Description |
Options |
Generic Value
|
| Ledger Code ** |
The ledger code the system uses to define which information can be used |
PL1 |
PL1
|
| Short Name |
An abbreviated version of the customer name |
10 character free text field or left blank |
Defined by the client
|
| Supplier Type ** |
The type of supplier this is. (Note, no maintenance screen has yet been created for this – so an Aptean staff member will have to create this using SQL) |
Must have been created in supplier types – LOV available |
Defined by the client
|
| Supplier Class ** |
The class of supplier this supplier is grouped under. |
Must have been created in supplier class maintenance – LOV available |
Defined by the client
|
| Currency ** |
The currency code for this supplier |
Must have been created in currency codes maintenance – LOV available |
Defined by the client
|
| Tax No |
The VAT number for the supplier |
20 character free text field or left blank |
Blank
|
| Cust Ledger/Customer |
The default customer code for this supplier (note, the ledger code always needs to be prefixed) |
SL1/Customer code – customer must have been created in customer wizard – LOV available |
SL1/Defined by the client
|
| Settle Method |
The frequency in which the supplier will settle their invoices (not migrated) |
Month, Day |
N/A
|
| Settle Days |
The number of days before an invoice needs to be settled (not migrated) |
4 digit numerical field |
N/A
|
| Bonded Flag |
Determines whether a supplier is bonded or not (not migrated) |
Y or N |
N/A
|
| SSCC Control Flag |
Determines whether this supplier requires SSCC labels |
0 – SSCC are Optional |
Defined by the client
|
|
|
M – SSCC are Mandatory |
|
| Invoice Required |
Determines whether an inbound commercial invoice will be required for the supplier (client specific) |
No Comm Inv Required |
No Comm Inv Required
|
|
|
Comm Inv Required Std Rec Only |
|
|
|
Comm Inv Required All Rec |
|
| Dispute Code ** |
The code used for disputing an invoice (not migrated) |
1 character free text field |
0
|
| Payment Set |
The payment group for the supplier (not migrated) |
1 character free text field or left blank |
Blank
|
| Buyer |
The buyer code for the supplier (not migrated) |
4 character free text field or left blank |
Blank
|
| Discount Days |
The number of days the discount will be valid for (not migrated) - will default to 1 |
3 digit numerical field or left blank |
Blank
|
| Discount % |
The Discount percentage to be applied to the invoice (not migrated) - will default to 0.00 |
7 digit numerical field or left blank |
0
|
| Credit Amount |
The amount of credit this supplier has on an invoice (not migrated) – will default to 0.00 |
0 – 99999999.99 |
0
|
| Credit Limit |
The amount of credit limit this supplier can have (not migrated) – will default to 0.00 |
0 – 99999999.99 |
0
|
| Balance |
The current invoice balance for this supplier |
Display only |
N/A
|
| Turnover |
The turnover balance for this supplier |
Display only |
N/A
|
| Approved Supplier |
Is this supplier approved? (not migrated) |
Y or N or left blank |
Blank
|
| Duplicate Advice Note No |
Does the supplier allow duplicate advice note numbers at receipt? |
Y or N |
Defined by the client
|
| Date Created |
The date the supplier was created |
Display only |
N/A
|
| Amendment Date |
The date the supplier details were last changed |
Display only |
N/A
|
| Date Last Invoice |
The date the supplier was last invoiced |
Display only |
N/A
|
| Date Last Payment |
The date the supplier last paid an invoice |
Display only |
N/A
|
| Date Last PO |
The date the supplier last raised a purchase order |
Display only |
N/A
|
| Date Last GR |
The date a receipt was last raised for this supplier |
Display only |
N/A
|
Supplier Wizard – Further Details (WHSORA045)
| Field Name |
Description |
Options |
Generic Value
|
| Normal Order Method ** |
The method by which orders will be raised (not migrated) – will default to EDI |
EDI, Post, Fax, Telex |
EDI
|
| Normal Payment Method |
The method by which the supplier will pay invoices (not migrated) – will default to Cheque |
Cheque, BACS, Credit Transfer |
Cheque
|
| Transfer Threshold |
The maximum value before an invoice can be transferred (not migrated) – will default to 0.00 |
0 – 99999999.99 |
0
|
| Delivery Warehouse |
The warehouse the supplier will default to (not migrated) |
Must have been created in warehouse maintenance or left blank – LOV available |
Blank
|
| Own Transport |
Does this supplier have their own transport (not migrated) – will default to Yes |
Y or N |
Yes
|
| Report Frequency |
The frequency in which reports are produced, If set to Day, the days they are to be produced on (not migrated) – will default to Week |
Day |
Week
|
|
|
Week |
|
|
|
Month |
|
| Invoice Frequency |
The frequency in which invoices are to be produced (not migrated) – will default to Weekly |
Daily |
Weekly
|
|
|
Weekly |
|
|
|
Monthly |
|
| COO Days Retention |
The number of days stock will be stored under this supplier before moving to another supplier (not migrated) |
3 digit numerical field or left blank |
Blank
|
| Bank Sort Code |
The bank sort code for this supplier |
6 character free text field or left blank |
Blank
|
| Bank Account No |
The bank account number for this supplier |
15 character free text field or left blank |
Blank
|
| Swift Account No |
An account number for the Swift carrier account number (client specific) |
8 character free text field or left blank |
Blank
|
| Intl Bank Code |
The international bank code for the supplier |
35 character free text field or left blank |
Blank
|
| Bank Name |
The Bank Name for the supplier |
15 character free text field or left blank |
Defined by the client
|
| Address |
The Bank address for the supplier |
35 character free text field or left blank |
Defined by the client
|
| Routing Code |
The route code for the supplier |
35 character free text field or left blank |
Defined by the client
|
| EDI Output |
The method by which the edi output will be produced (not migrated) – will default to Both |
Autofax |
Both
|
|
|
Both |
|
|
|
Edi |
|
|
|
File |
|
|
|
None |
|
|
|
Print |
|
| Base Balance |
The base value balance for this supplier (not migrated) |
Display only |
N/A
|
| Last Year Sales |
The amount of sales for last year (not migrated) – will default to 0.00 |
0 – 9999999.99 |
0
|
| Agreed Max Level |
Does this supplier have an agreed maximum credit limit (not migrated) |
Y or N or left blank |
Blank
|
| Head Office A/C |
The head office account number for the supplier (not migrated) |
10 character free text field or left blank |
Blank
|
| Pallet Reg A/C |
The registration account number for the supplier’s pallet account (not migrated) |
10 character free text field or left blank |
Blank
|
| EAN/UCC Code |
The EAN code for the supplier |
10 character free text field or left blank |
Defined by the client
|
Supplier Wizard – Buyer Address (WHSORA045)
| Field Name |
Description |
Options |
Generic Value
|
| Address Type ** |
The default address type for this customer and the address number |
BYR – you can have multiple addresses for one customer |
BYR
|
| Name ** |
The supplier’s name |
35 character free text field |
Defined by the client
|
| Address Code |
The unique address identifier given by the WMS |
Display only |
N/A
|
| Address ** |
The first three lines of the customer’s invoice address |
3 x 35 character free text field (note, 2nd and 3rd line can be left blank) |
Defined by the client
|
| Town ** |
The town of the invoice address |
35 character free text field |
Defined by the client
|
| Post Code ** |
The post code/zip code for the invoice address |
10 character free text field |
Defined by the client
|
| County |
The county /state of the invoice address |
15 character free text field or left blank |
Defined by the client
|
| Country |
The country code of the invoice address |
Must have been created in Country codes maintenance or left blank – LOV available |
Defined by the client
|
| Buttons
|
| New Buyer Address |
Enables the user to add an additional buyer address
|

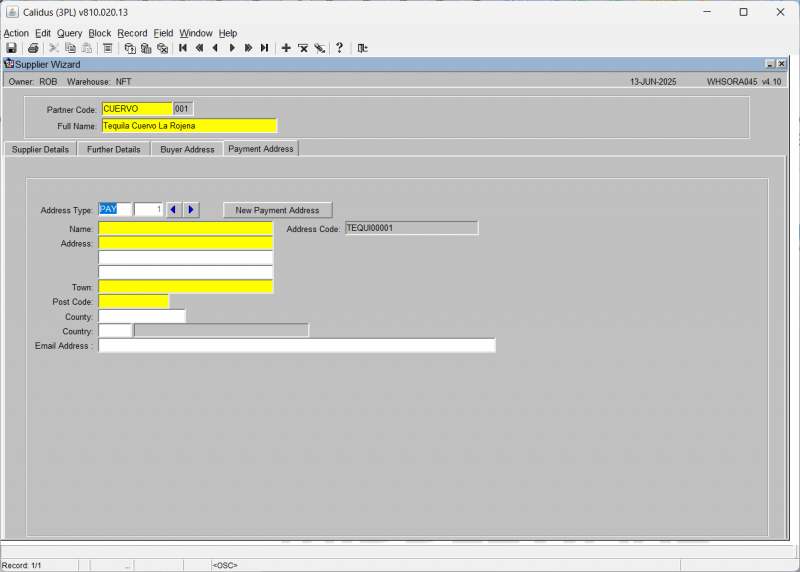

Supplier Wizard – Payment Address (WHSORA045)
| Field Name |
Description |
Options |
Generic Value
|
| Address Type ** |
The default address type for this customer and the address number |
PAY – you can have multiple addresses for one customer |
PAY
|
| Name ** |
The supplier’s name to be paid to |
35 character free text field |
Defined by the client
|
| Address Code |
The unique address identifier given by the WMS |
Display only |
N/A
|
| Address ** |
The first three lines of the supplier’s invoice address |
3 x 35 character free text field (note, 2nd and 3rd line can be left blank) |
Defined by the client
|
| Town ** |
The town of the invoice address |
35 character free text field |
Defined by the client
|
| Post Code ** |
The post code/zip code for the invoice address |
10 character free text field |
Defined by the client
|
| County |
The county /state of the invoice address |
15 character free text field or left blank |
Defined by the client
|
| Country |
The country code of the invoice address |
Must have been created in Country codes maintenance or left blank – LOV available |
Defined by the client
|
| Phone No |
The telephone number of the invoice address |
15 character free text field or left blank |
Defined by the client
|
| Buttons
|
| New Payment Address |
Enables the user to add an additional payment address
|
