C-WMS Pick Confirmation Alternate Pallet Guide
CALIDUS WMS
30th April 2025 - 2.0
Reference: FS UG 352167
Confirming an Alternate Pallet at Pick Confirmation
INTRODUCTION
Due to circumstances such as stock being damaged or inaccessible for whatever reason there will be a requirement to either short the order is send an alternative pallet out in its place.
PROCESS
To change the original pallet and to amend on an alternative -
- 1. The order must first be called up in Pick Confirmation WHS1714
- 2. Drill down into the line details to find the pallet that requires removing from the order
- 3. Zero the original pallet
- 4. Amend a new pallet in its place
- 5. Either adjust the original pallet off the system or place on hold to stop it being allocated to another order
Example - The order allocated against pallet 38893, but that pallet has been damaged. We need to use pallet 38894 in its place. How do we handle this in the Calidus-WMS system?

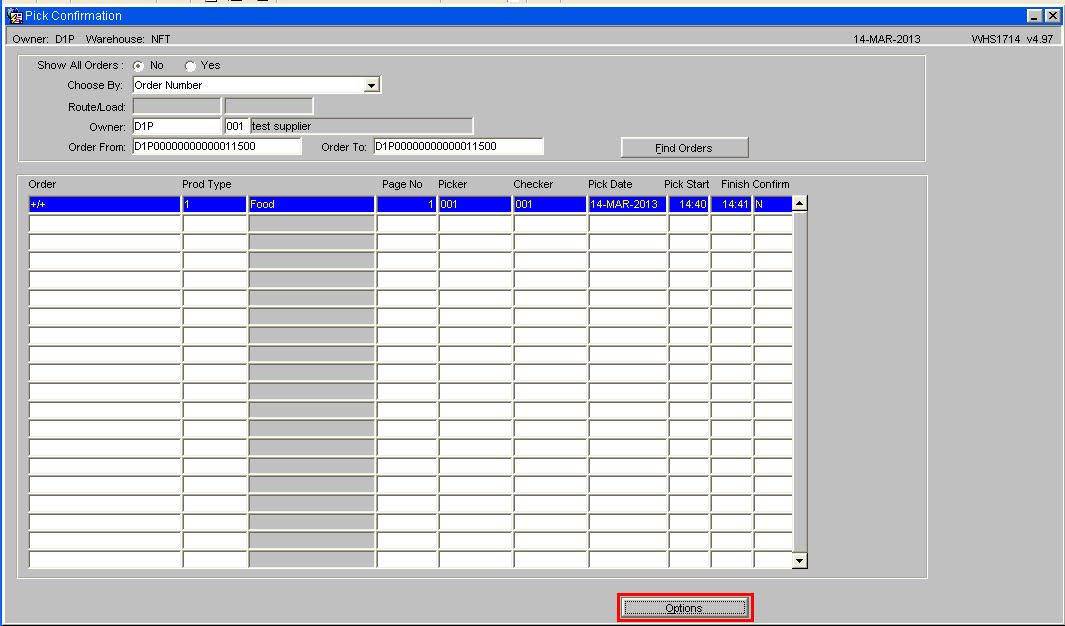

Find the order in the pick confirmation screen, enter the picker and checker info, then press Options button

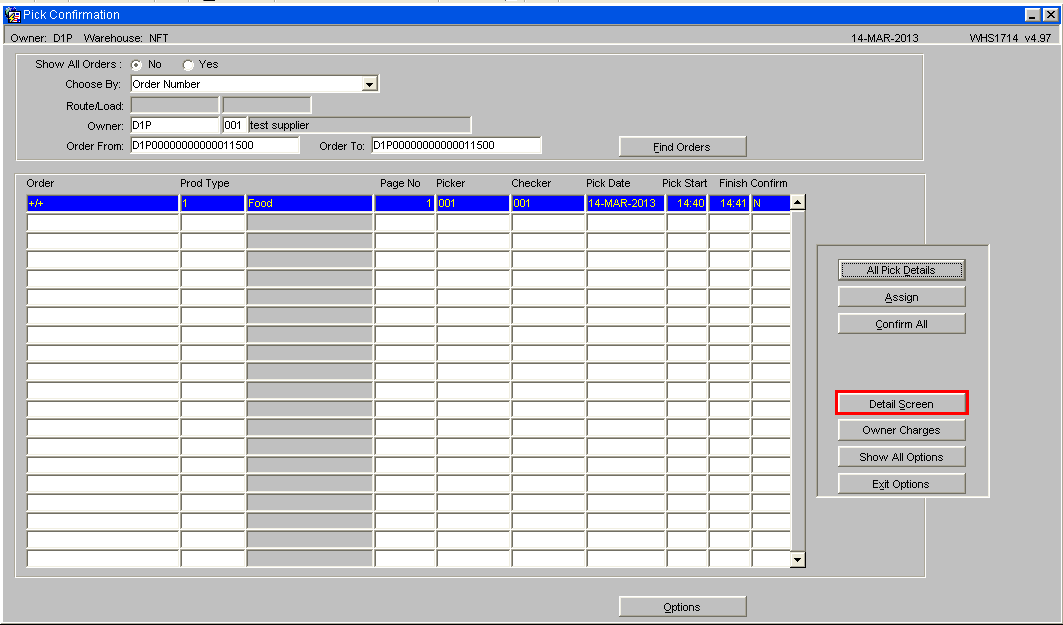

Select the Detail Screen option

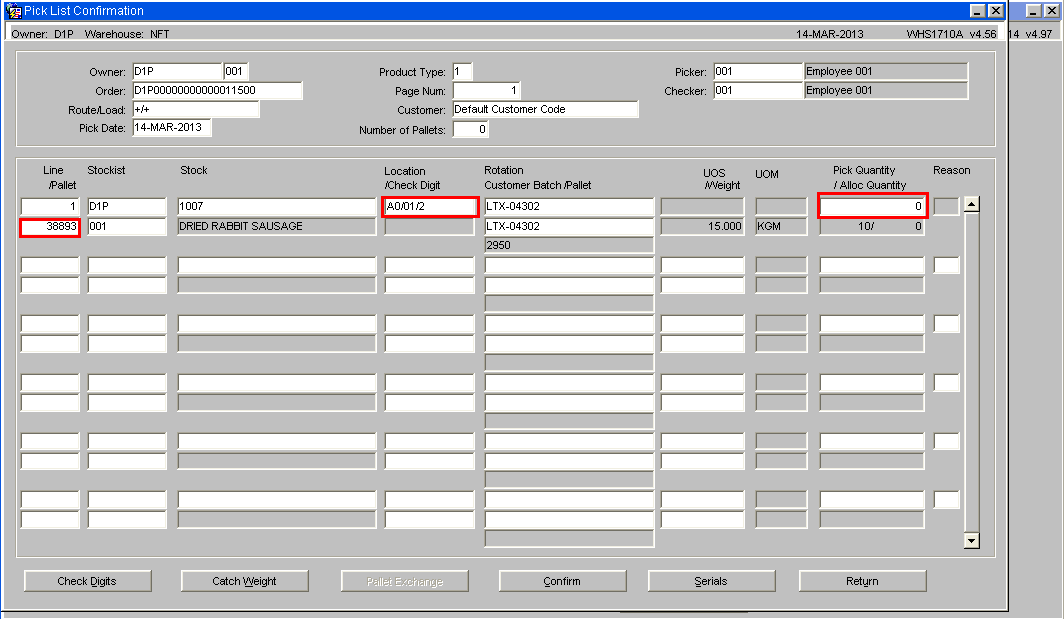

There was no pallet 38893 in location A0/01/2, so we set the pick quantity to 0, the pick quantity originally matched the allocated quantity.

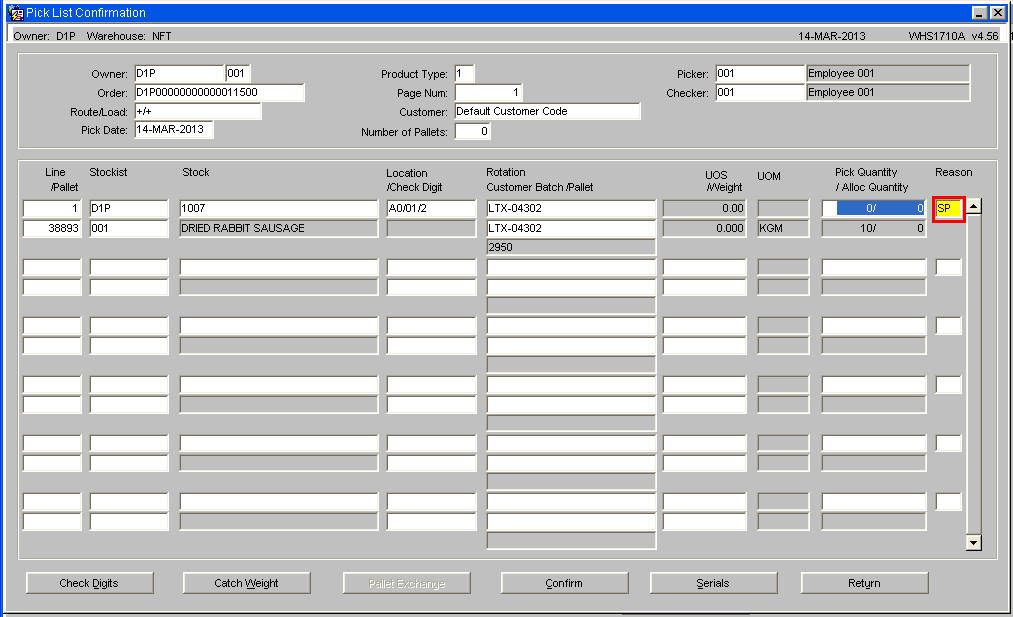

Enter a reason code. A pop-up list of values is available.

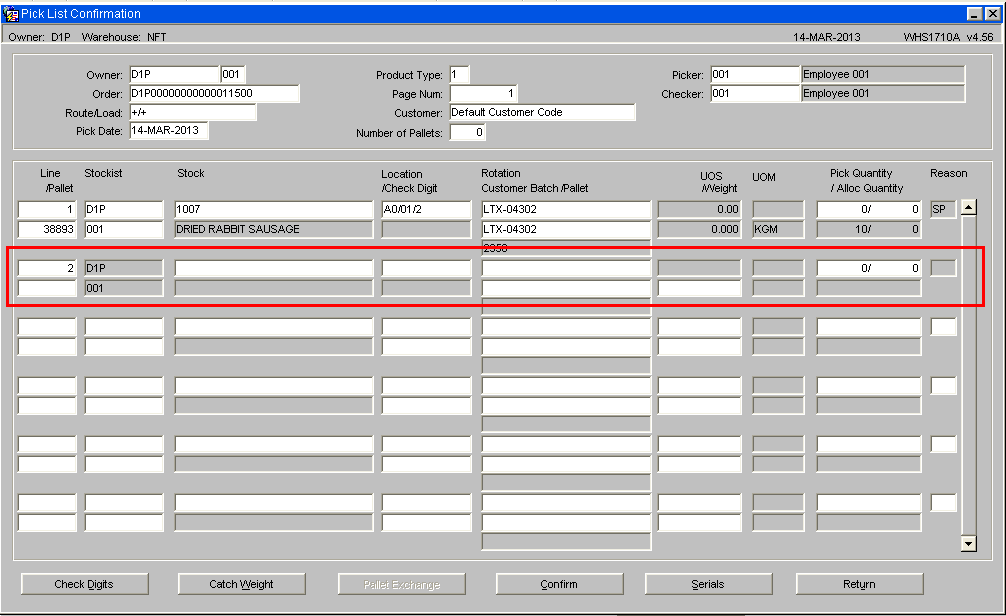

Click on the next line, the line number and stockist code auto-populate.

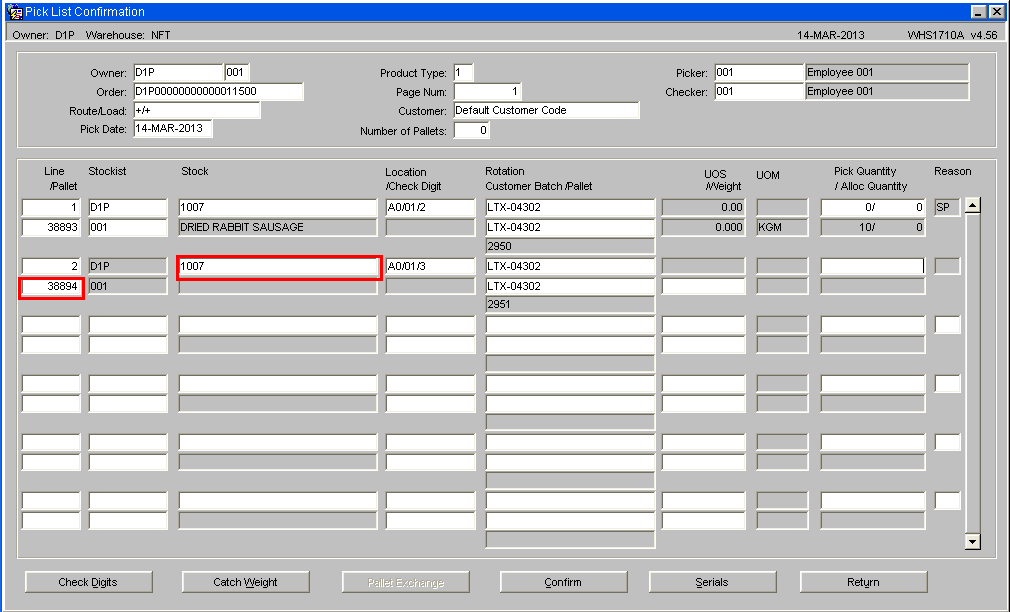

Enter the stock code, and the pallet id which was actually picked. The location/rotation/etc should default in for you.

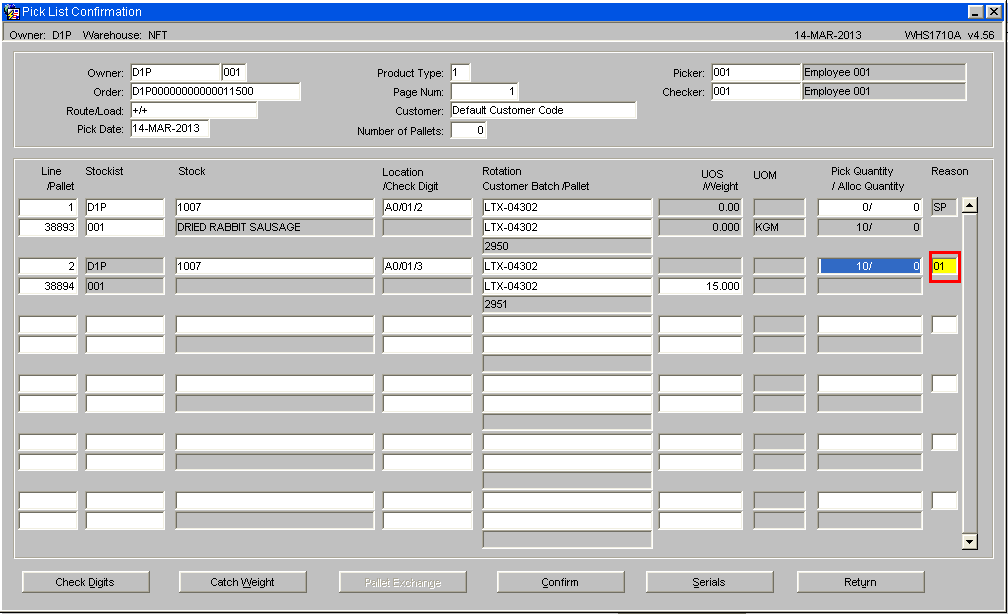

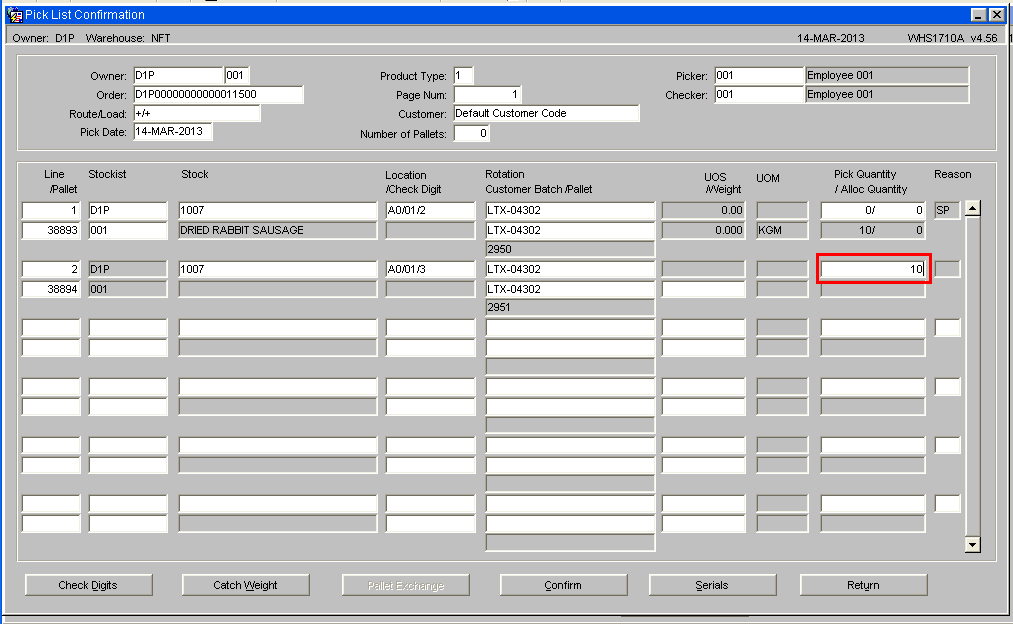

Enter the picked quantity for this pallet, normally the same as the allocated figure on the zeroed line.
Again you will need to enter a reason code.
Once all the lines in the detail screen are correct, press Confirm.

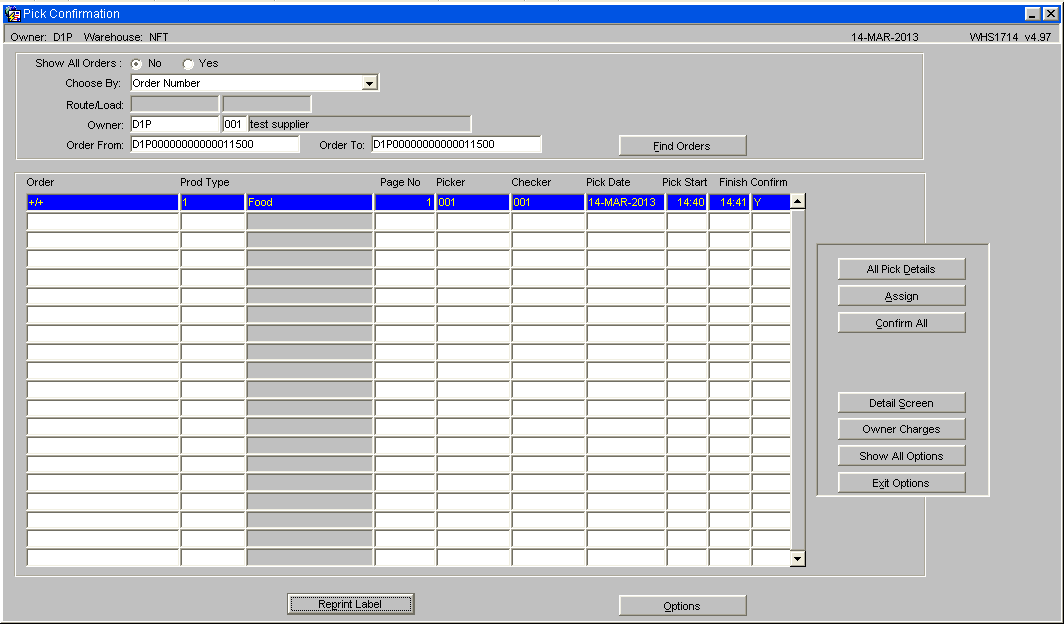

You will be returned to the main screen. If all the detail pages are confirmed now, the whole order will be marked as pick confirmed.
The pick confirmation screen has done the following:
- Confirmed zero cases from pallet 38893, so it is no longer used on this order
- Allocated 10 cases from pallet 38894 so it cannot be used by a different order.
- Pick confirmed the order ready for despatch.
Now you need to go into the stock adjustment screen and zero the original pallet:
Stock Adjustment Screen
To prevent the problem pallet being allocated to another order the stock must either be placed on hold or adjusted off the system.
Run the Stock adjustments screen

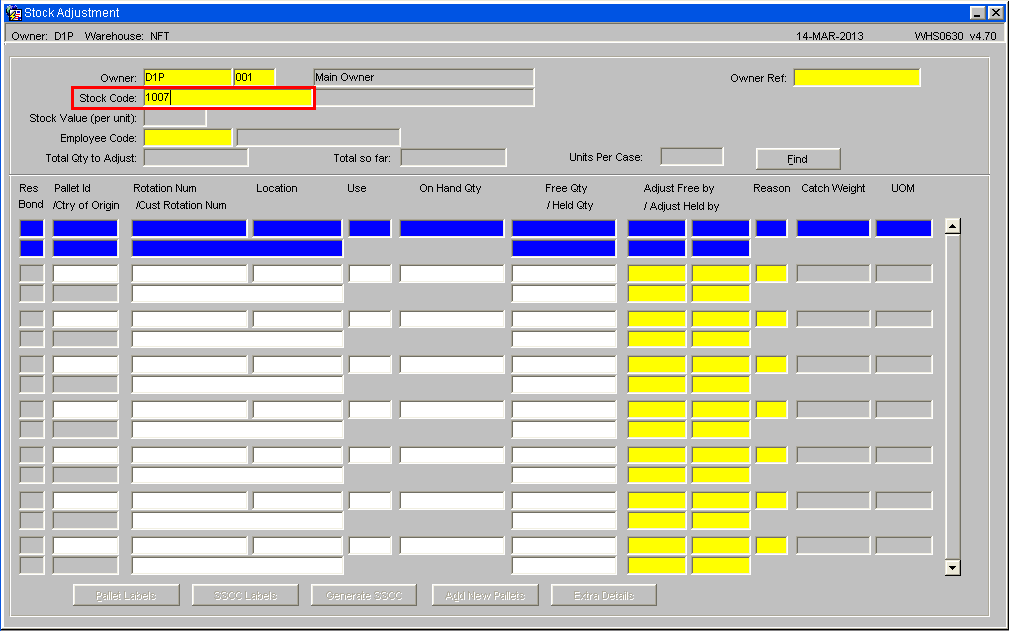

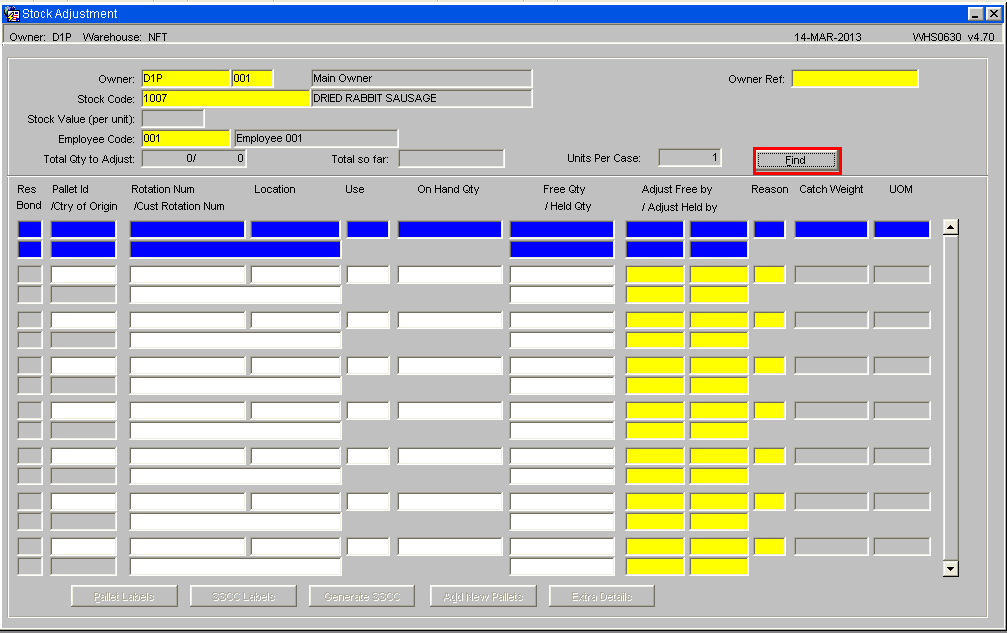

Enter the stock code and your employee code and press Find. This will show you all the pallets for this stock code in the warehouse:

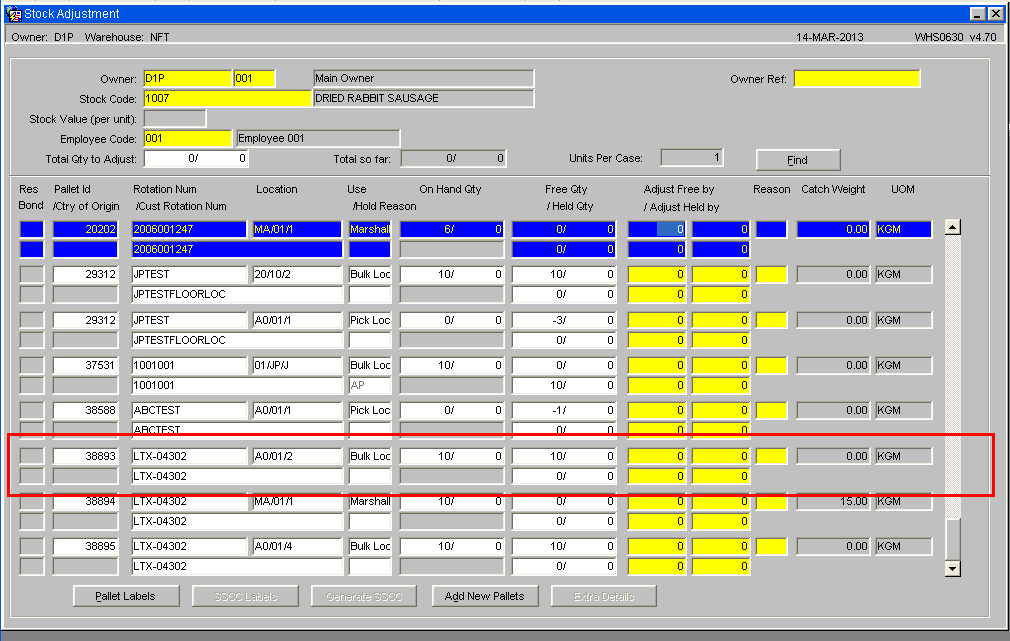

Scroll to the pallet you want to change.

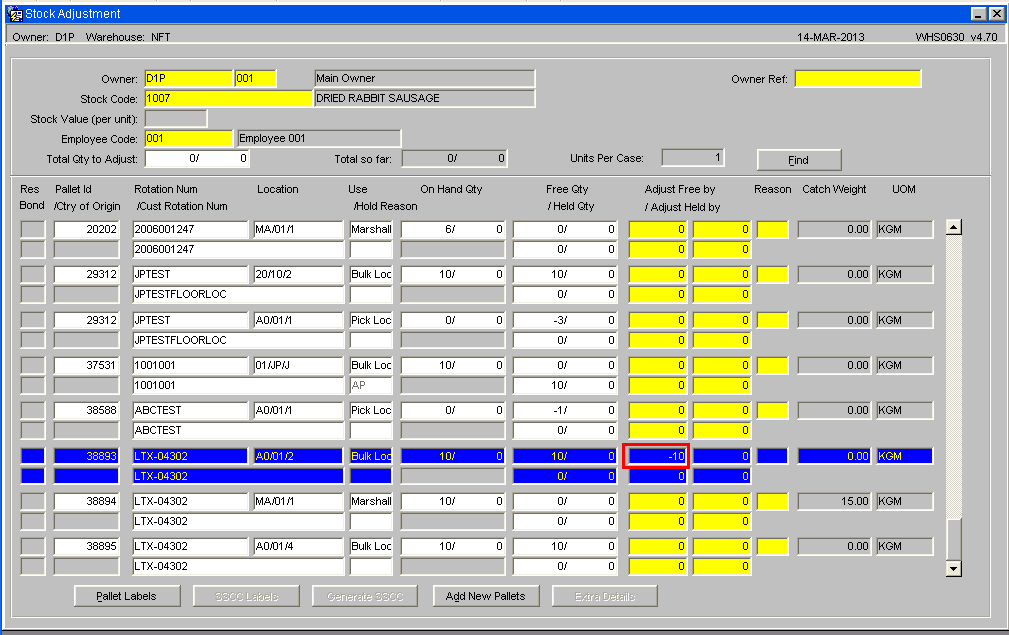

This pallet is listed as having 10 cases. To zero it, type -10 in the top left box. This will reduce the quantity by 10 cases.

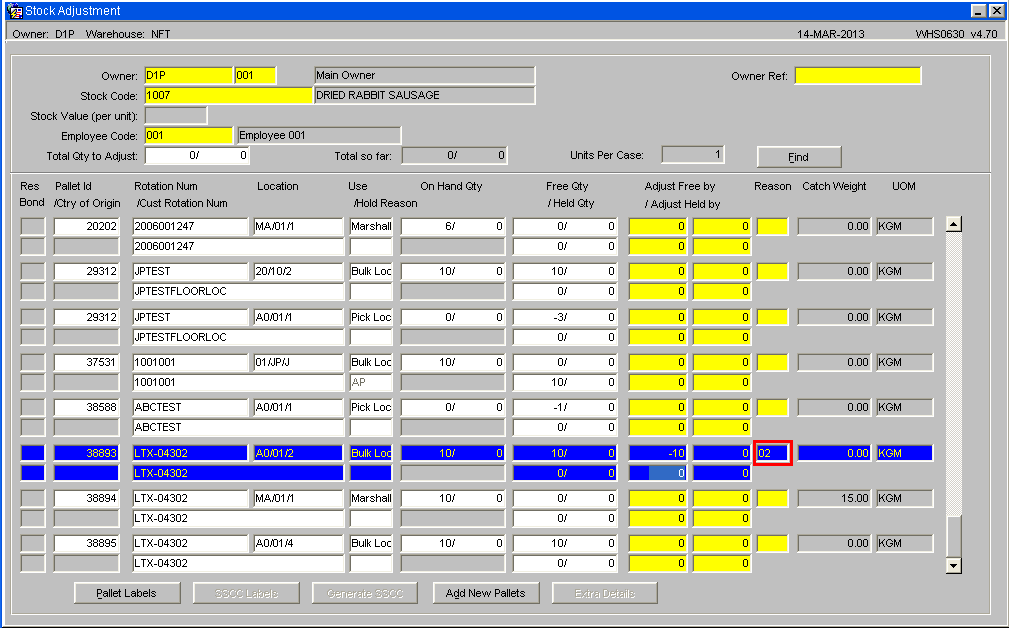

Click on the reason code field and enter the appropriate reason code. A pop-up list is available.

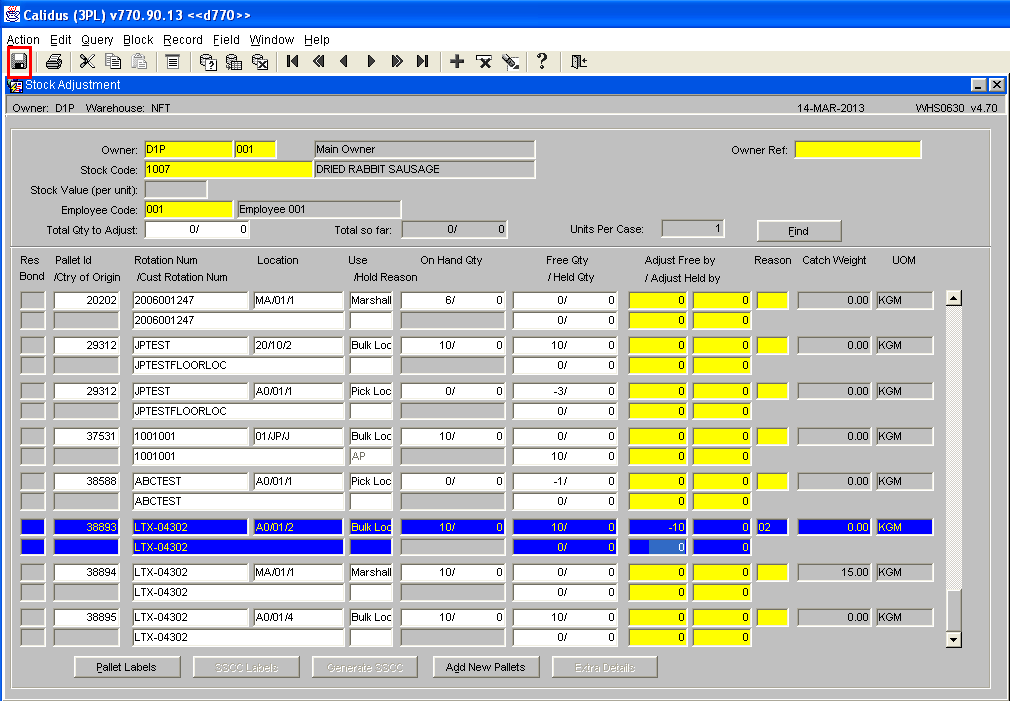

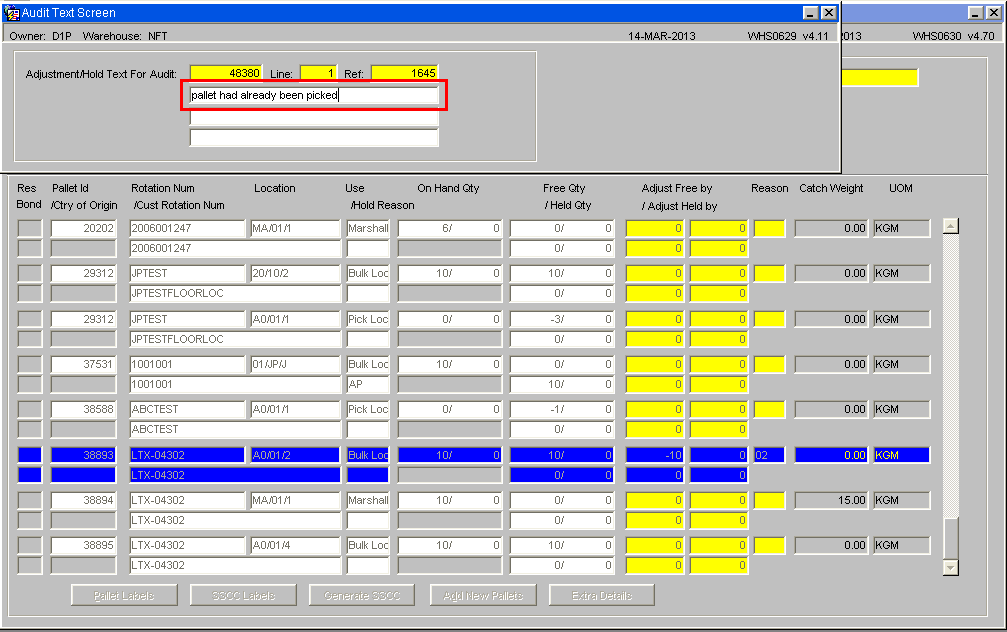

Now save the record. A pop-up window will allow you to enter some notes about why the pallet quantities are being changed. Save any comment and exit this screen.
The pallet is now zeroed, meaning it cannot be allocated to future orders.
Holding Stock
If operationally the stock should not be adjusted and removed from the system the alternative is to place the pallet on hold with an applicable reason code, this will prevent the pallet and stock being allocated to the next order that is placed.
